AUTO

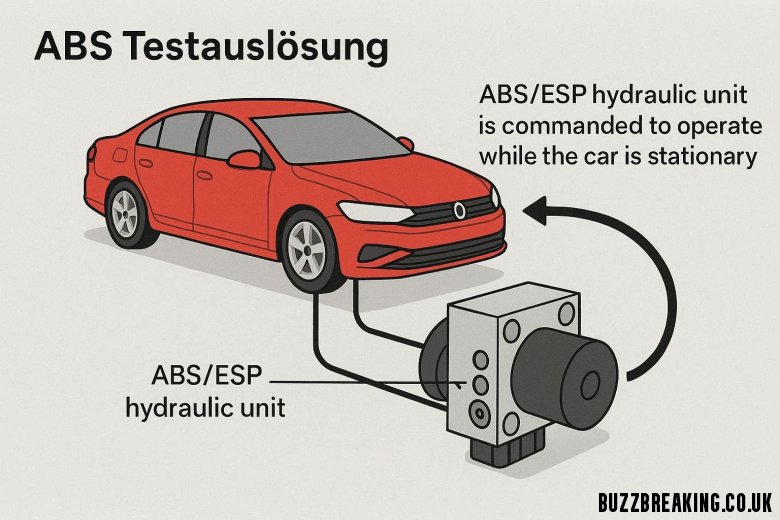

ABS Testauslösung: Function, Process & Troubleshooting Guide
The ABS Testauslösung is one of the most important brake diagnostic procedures in 2026. It allows mechanics, inspection centers, and vehicle owners with professional scan tools to electronically trigger the Anti-lock Braking System (ABS) to test whether the pump, valves, sensors, and control module are working correctly.
Modern vehicles rely heavily on ABS and ESP systems for safe braking. If there is trapped air, a failing pump, or a sensor issue, braking performance can be reduced. That is why ABS Testauslösung is now standard practice in workshops, MOT/TÜV inspections, and advanced OBD diagnostics.

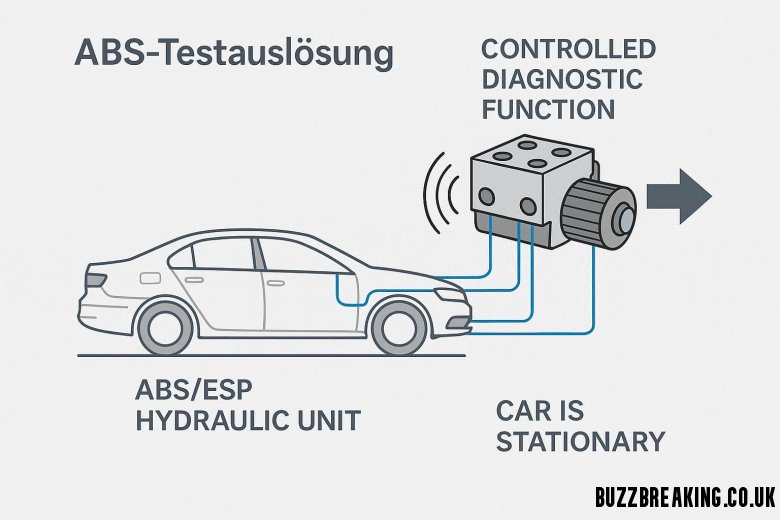

What Is ABS Testauslösung?

What Is ABS Testauslösung?
ABS Testauslösung is a controlled diagnostic function where the ABS/ESP hydraulic unit is commanded to operate while the car is stationary. The vehicle does not need to skid or brake hard during the procedure.
Main Components Checked During the Test
- Solenoid valves open and close correctly
- Return pump builds hydraulic pressure
- Wheel speed sensors provide valid signals
- Communication with the ABS control module is confirmed
In short, it is a self-test under load that the vehicle cannot fully perform during normal driving.
When Is ABS Testauslösung Needed?
This procedure is commonly used in several repair and inspection situations.
Typical 2026 Scenarios
- After replacing an ABS sensor, hydraulic block, or control unit
- Troubleshooting when the ABS warning light is on, but no permanent fault code appears
- During deeper inspections after MOT, TÜV, or roadworthiness concerns
- After brake bleeding when the pedal still feels soft
Important: Without activating the ABS system, air can remain trapped inside the ABS hydraulic block, causing poor pedal feel even after normal bleeding.
Requirements Before Starting the Test
Before performing ABS Testauslösung, several conditions must be met.
| Requirement | Why It Matters |
|---|---|
| Battery voltage above 12.4V | ABS pump may draw up to 40A |
| Ignition ON, engine OFF | Control module active without engine noise |
| Fault memory cleared | Stored faults can block activation |
| Vehicle secure / wheels free | Safe valve cycling during test |
| Diagnostic scanner connected | Required for modern systems |
Without a scan tool, a true ABS activation test is not possible on most modern vehicles.
ABS Testauslösung Step by Step
With tools like VCDS, ODIS, Bosch KTS, Gutmann, Carly, or advanced OBD scanners, the process is similar.
How to Perform It
- Select module 03 – Brake Electronics
- Open Output Tests or Basic Settings
- Choose ABS Pump / Test Activation
- Press and hold the brake pedal
- Pump runs for 2 to 10 seconds
- Valves click loudly during operation
- Recheck fault codes after completion
What Happens Inside the Car
- Return pump may build 120–180 bar pressure
- Inlet and outlet valves pulse individually
- ABS warning light may blink
- Brake pedal can vibrate or drop slightly
This behavior is normal during testing.
Common Problems & Faults
If the test fails or does not start, these are common causes.
Most Frequent Issues
- Low battery voltage → connect charger
- Active wheel speed sensor fault
- Brake pedal not pressed hard enough
- Air trapped in system causing noisy pump
- Blown fuse or relay issue
A common code is 01276 – ABS Hydraulic Pump. This may indicate a failed pump, relay, fuse, or wiring problem.
ABS Testauslösung vs ESP Test Activation
Many drivers confuse these two procedures.
| System | What It Tests |
|---|---|
| ABS Testauslösung | Wheel lock prevention, pump, valves |
| ESP Test Activation | Plus steering angle, yaw sensor, selective braking |
On newer systems such as ESP 9.0 and above, both tests are often combined into one routine lasting 30 to 60 seconds.
Can You Perform ABS Testauslösung Yourself?
Yes — but only with the correct hardware.
Popular 2026 Options
- VCDS
- OBDeleven
- Carly
- Bosch KTS / Hella Gutmann professional systems
Many cheap Bluetooth apps only read codes and cannot run output tests.
Warning: Brake system work affects safety. After any test, always perform a road test and brake check at low speed.
ABS Testauslösung After Brake Bleeding
After replacing brake hoses, master cylinders, or lines, air often stays trapped inside the ABS unit.
Correct Method
- Bleed all four calipers normally
- Run ABS Testauslösung
- Air moves into brake lines
- Bleed brakes again
- Repeat until pedal feels firm
This saves time compared with endless manual pumping.
Legal & Inspection Rules in 2026
During annual inspections, the ABS warning light is a mandatory check.
- Light stays on after startup = major defect
- Active ABS testing is usually not part of basic inspection
- If braking behavior seems abnormal, workshop diagnostics may be required
A working ABS system remains essential for passing inspections.
Final Verdict
The ABS Testauslösung is one of the most valuable brake diagnostic tools in 2026. It helps verify pumps, valves, sensors, and system pressure in less than one minute. It is especially useful after repairs or brake bleeding where hidden air or weak components can create dangerous braking problems.
